BETTI Macchine - Packaging Machinery

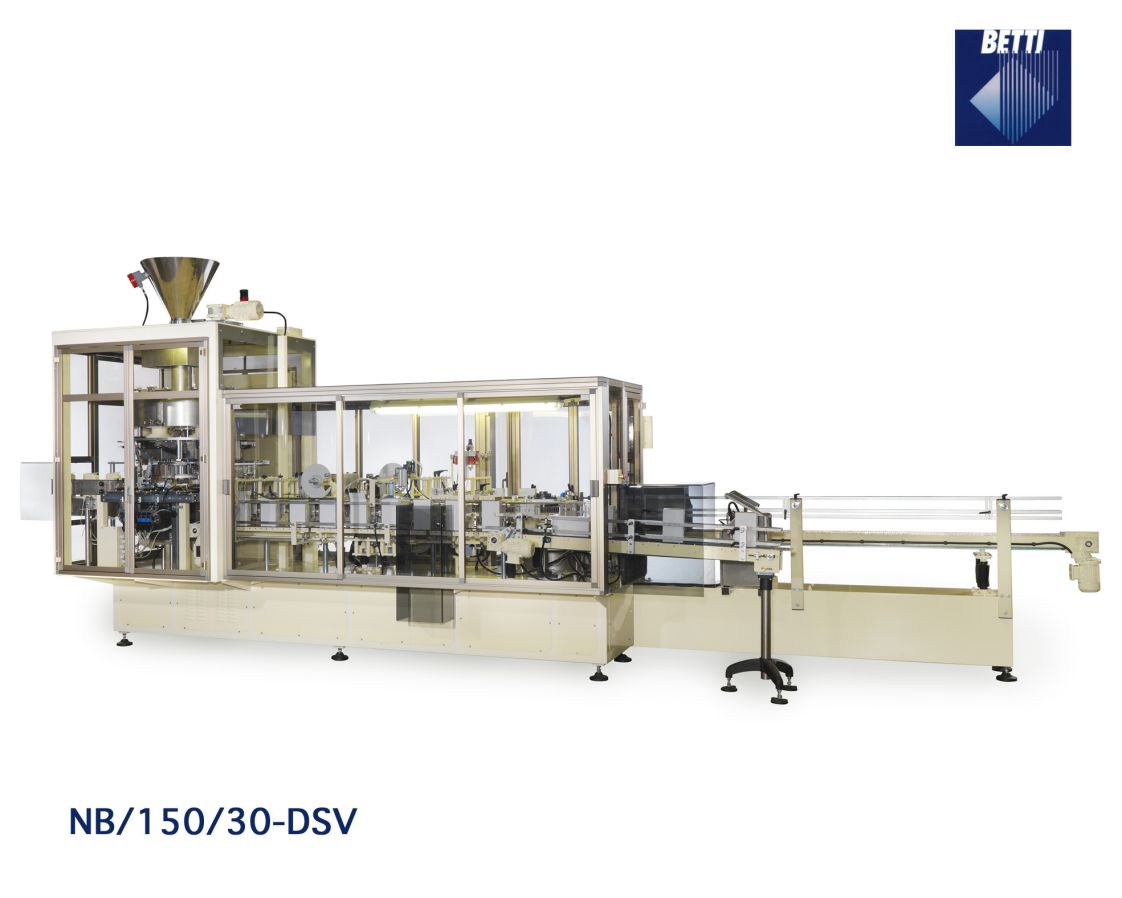

Vertical cartoning machine for small and medium carton sizes.

Production speed up to 150 Cartons/1’

The flat cartons are placed on the blanks magazine and automatically conveyed to the forming system. Once in the machine, the cartons undergo marking on the outside flap, gluing and closure of the bottom before reaching the filling area. Product dosing can be done by means of a telescopic-cylinder volumetric system, weighing units, etc. The carton is then glued on the upper side and finally transferred to the way-out line. It is also complete with: - Production speed adjustment with electronic system. - Size changeover adjustment. - Continual regulation of product weight and volume. - Infeed automatic control and production data store. - Dust extraction nozzles, devices, vibrator and specific devices suitable for the product. - Electronic glue application control. - Full accident-prevention protection in compliance with the law with CE mark.
  • Automatic dispenser of leaflets, small evelopes, coupons, etc.
  • Check weigher: electronic with dynamic weighing and possible local or remote printer.
  • Electronically programmable size changeover.
  • Filling: with volumetric dosing, multi-headed electronic weighers, counter units or similar.
  • Gluing: cold glue or HOT-MELT standard with or without Sift proof.
  • Introduction system of single and multiple bags.
  • Out tolerance carton ejector.
  • Special loaders for plastic containers, bottles and glasses.
  • Weight control and Metal detector
  • Inkjet marker
  • Laser Marker
  • Space for the introduction of products in manual in the case

Velocità meccanica: 160/1’
Gamma astucci: min. 60x30x130H; max. 220x120x350H
Incollagio: Hot Melt

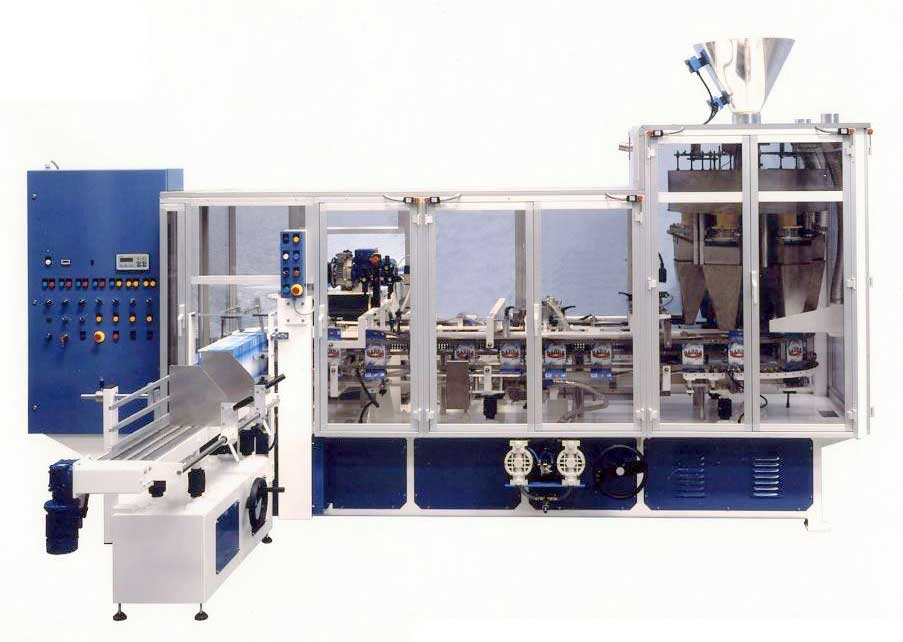

NB/150/28-D cold glue

NB/150/28-D hot melt

NB/150/28-W

NB/150/34-D

NB/150/L/34-W

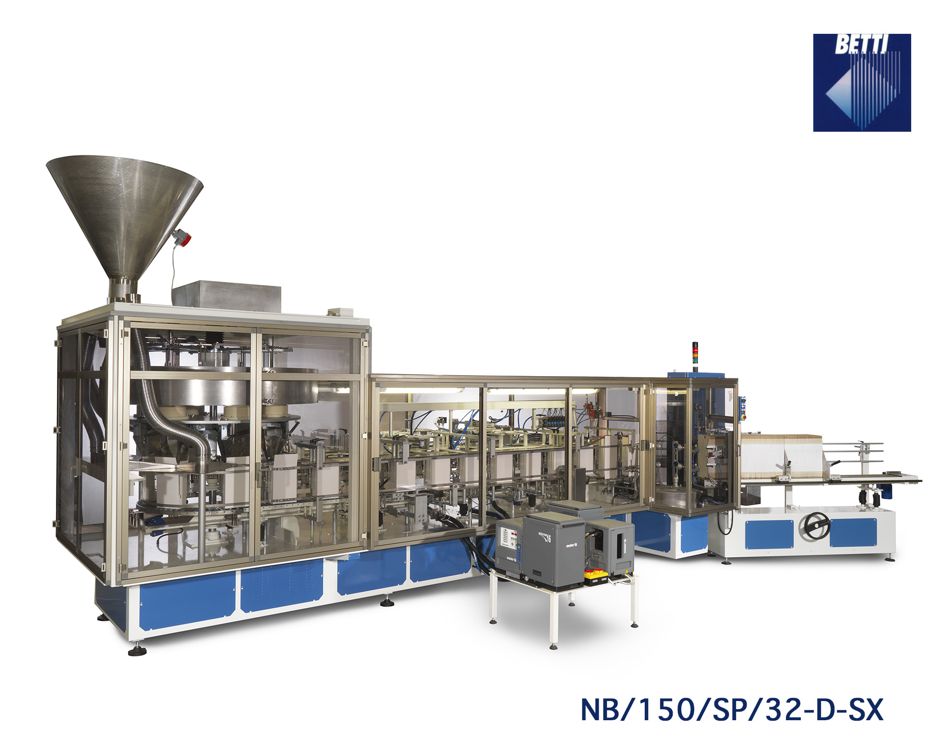

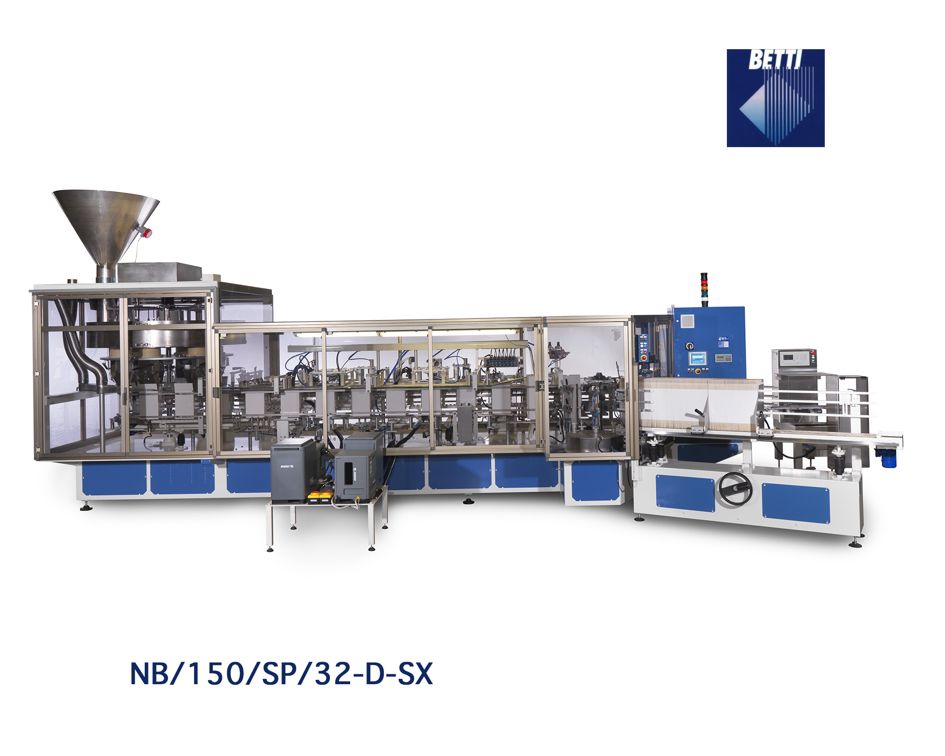

NB/150/SP/32-D-SX
